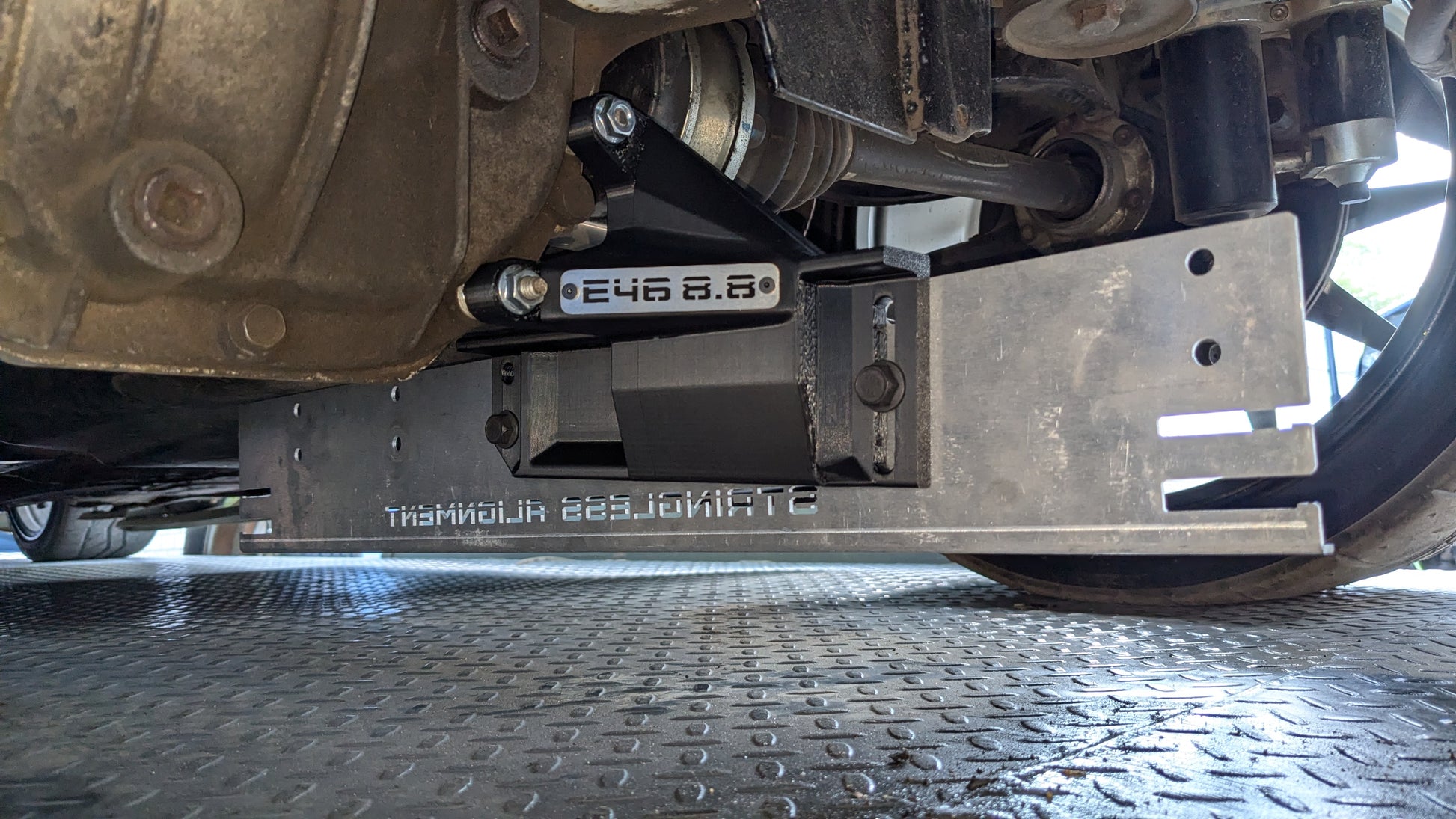

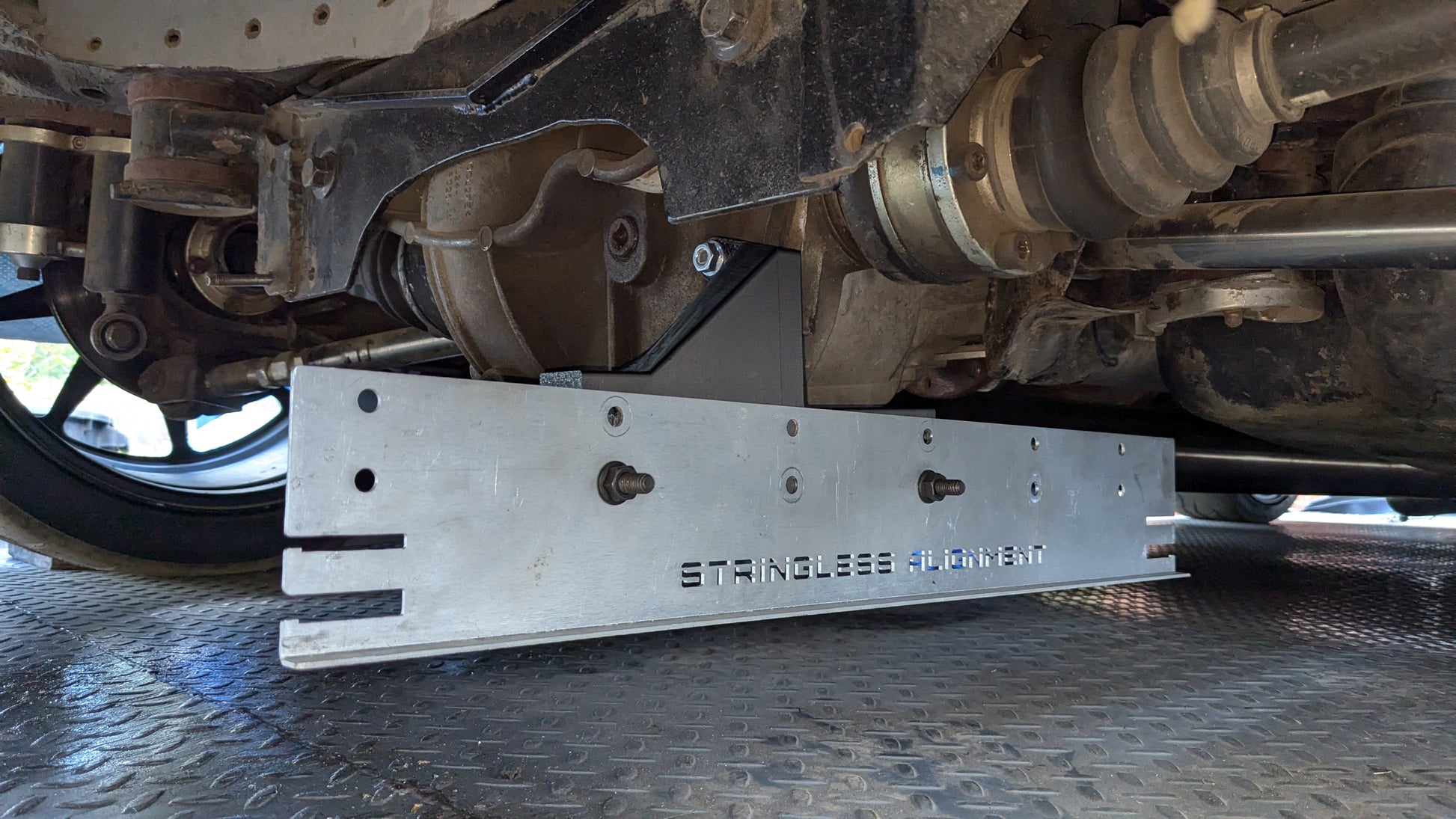

This Patent-Pending Stringless Alignment Bracket is designed to give your car a reference plane for measuring toe on the rear wheels individually. This bracket bolts to the differential of your vehicle. This assembly must be used with toe plates to measure each wheel individually. The measurement plate height can be adjusted to fit your vehicles ride height.
The complete assembly, mounting hardware and instructions included in standard order. Two matching fraction measuring tapes optional. Made of Carbon Fiber reinforced plastic standard or optional Extreme Temperature and Strength Carbon Fiber Nylon rated for over 180°C!
This was tested on an E46 and is compatible with vehicles that have the Ford 8.8 differential upgrade. This is not compatible with the Winters Quick change.

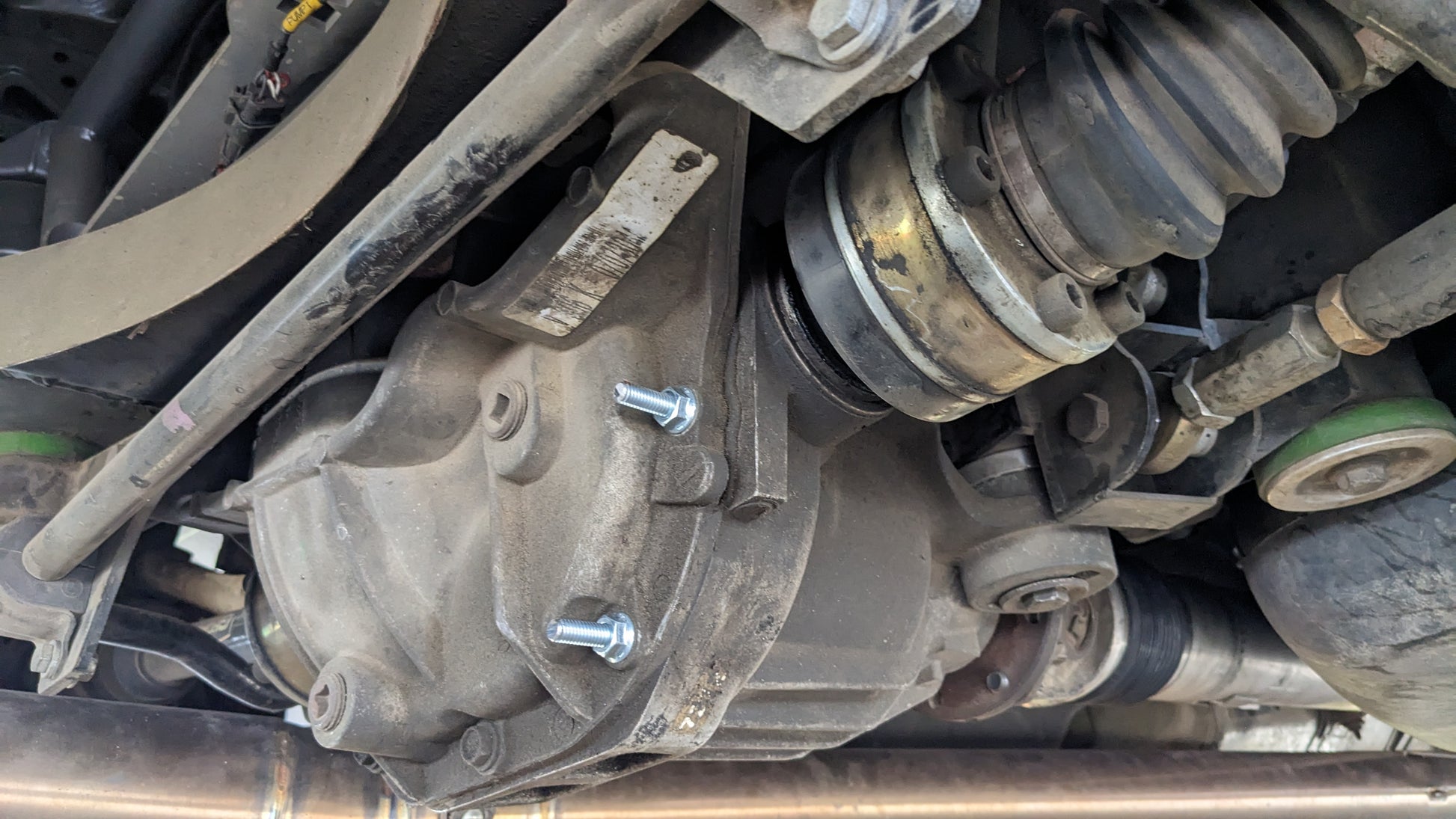

Before selecting your option, measure from the lower right diff cover bolt to the ground as shown in the image. The value below is the shortest height for the given option. If in doubt, order the shorter kit.
