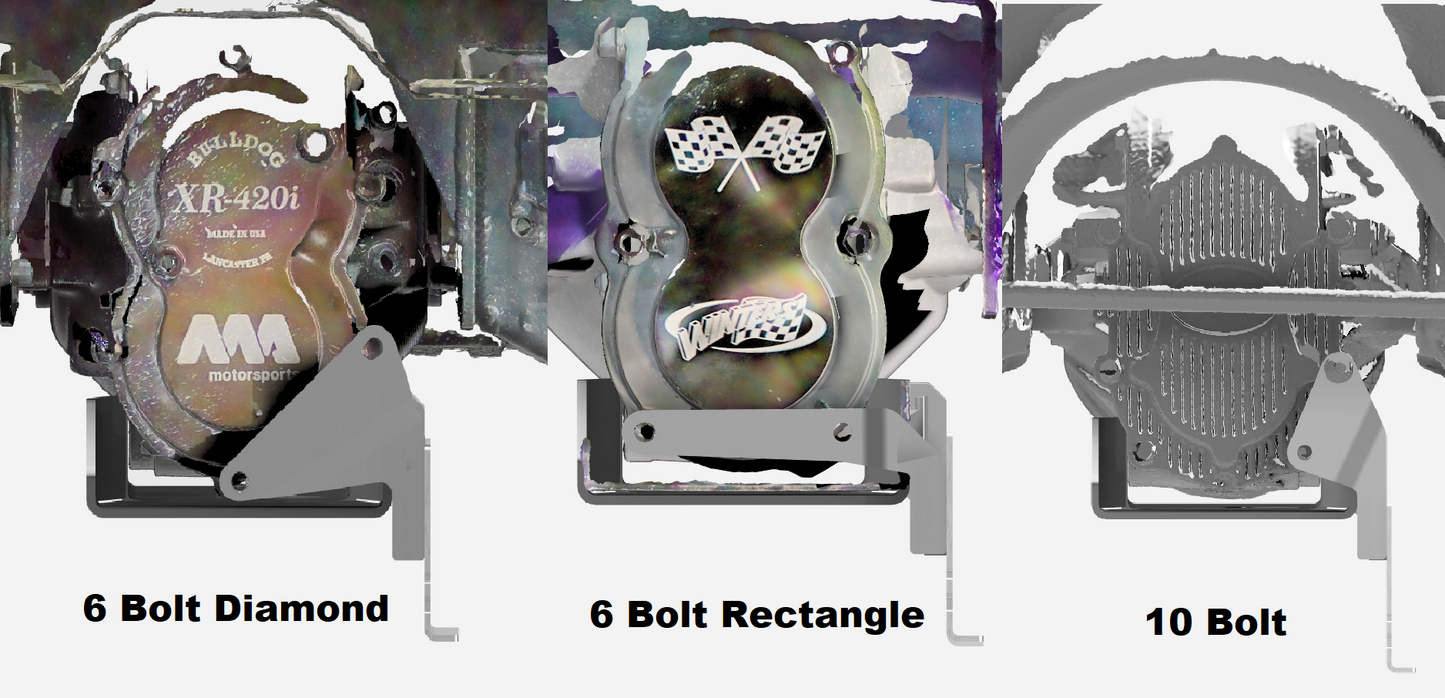

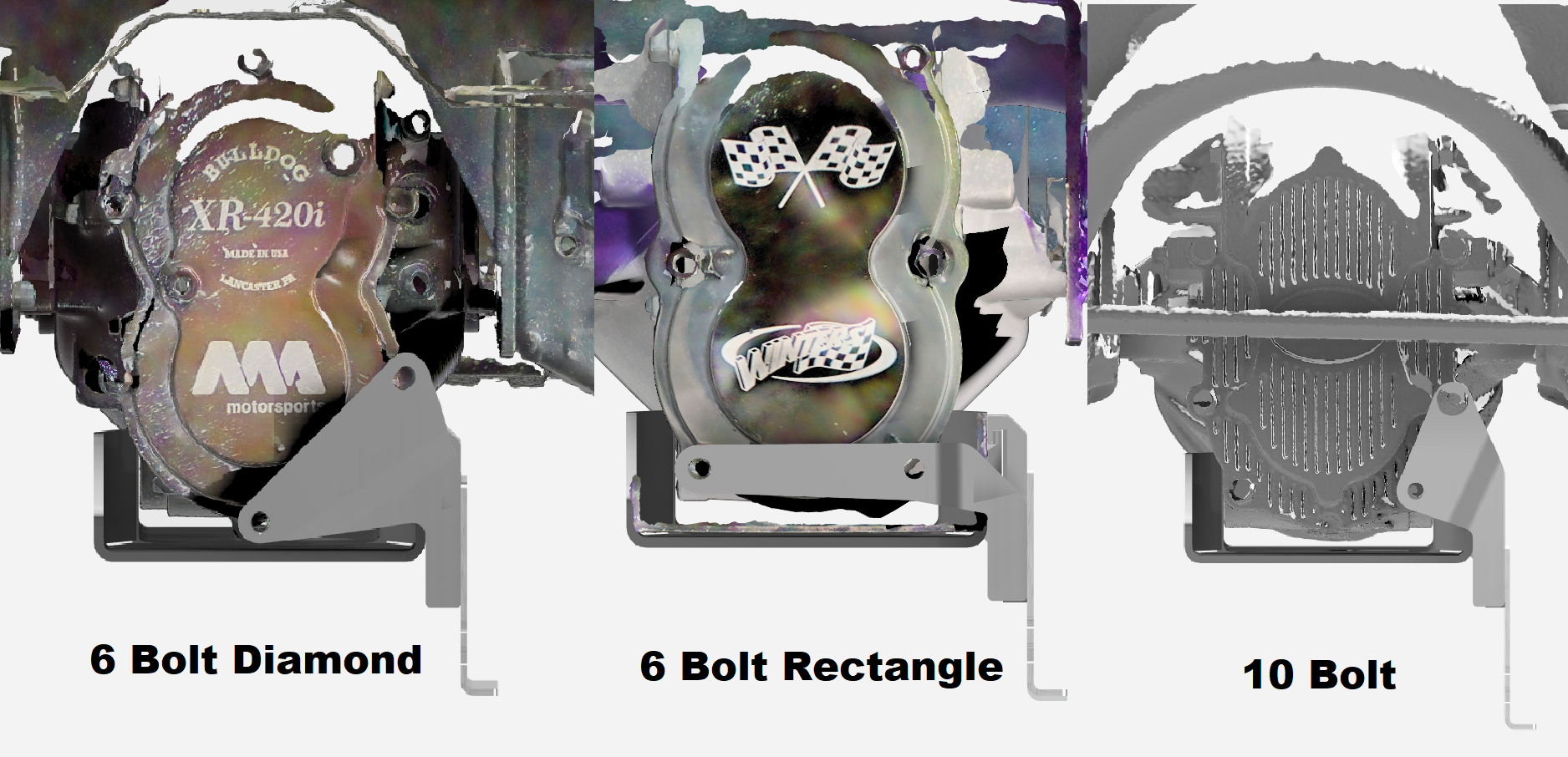

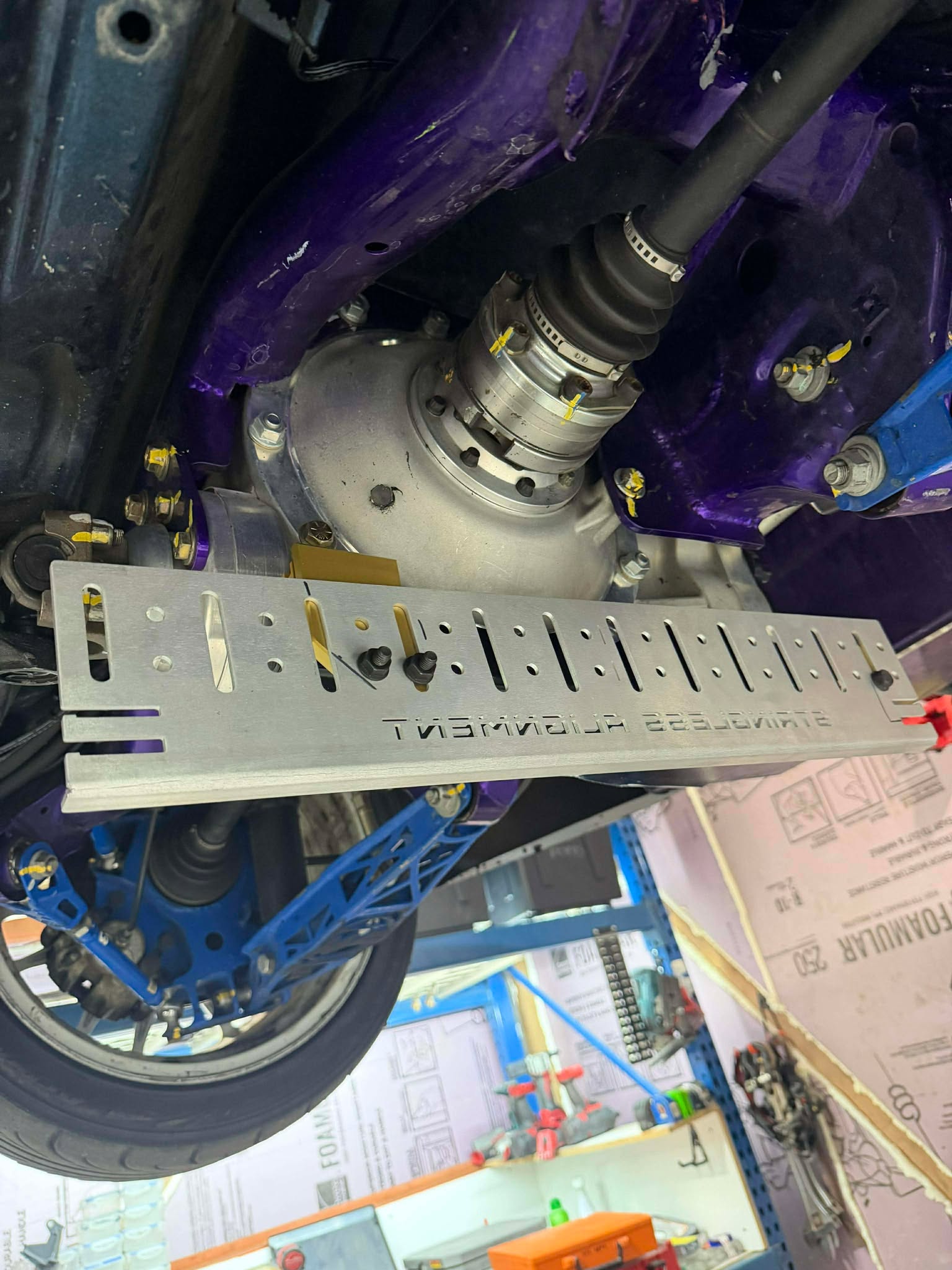

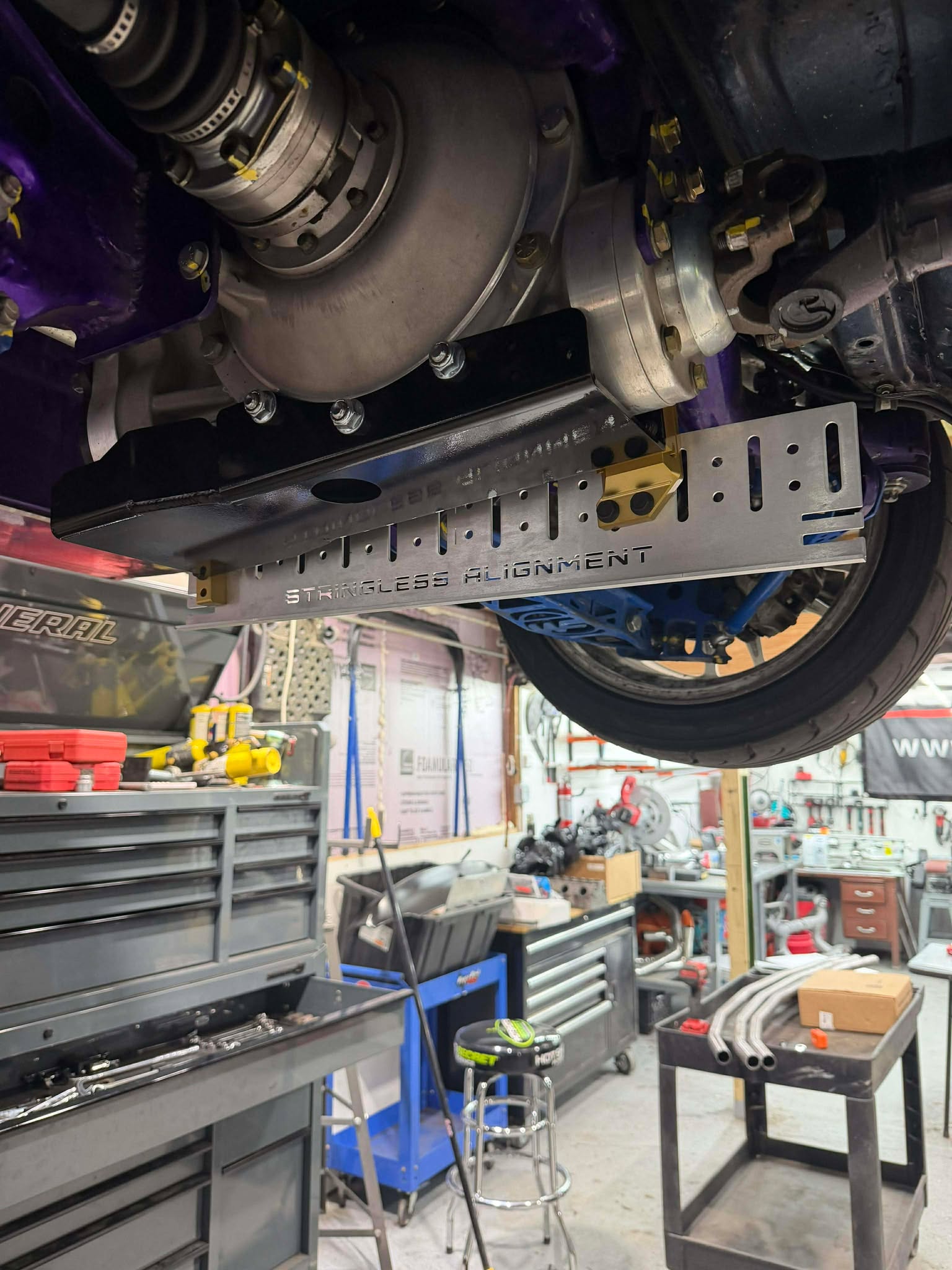

This Patent-Pending Stringless Alignment Kit is designed to give your car a reference plane for measuring toe on the rear wheels individually. The Quick Change design utilizes a full length skid plate and 3 billet brackets to secure the alignment plate. This kit can be mounted on either side of the Quick Change for maximum flexibility. The rear drop bracket is specific to the rear cover design of your Quick Change. Select the correct option for your setup. Skid plates are welded at the bends and powder coated black.

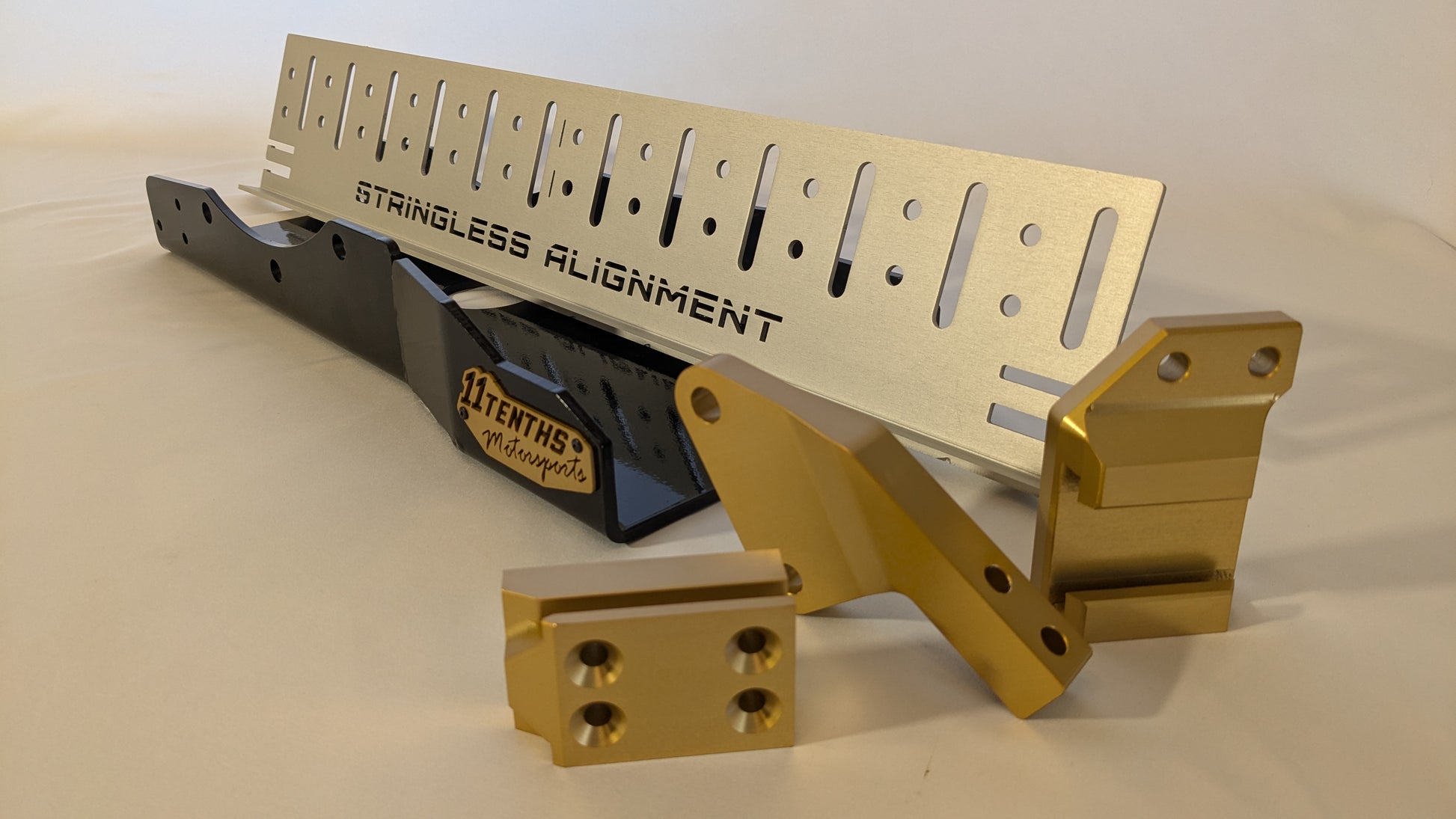

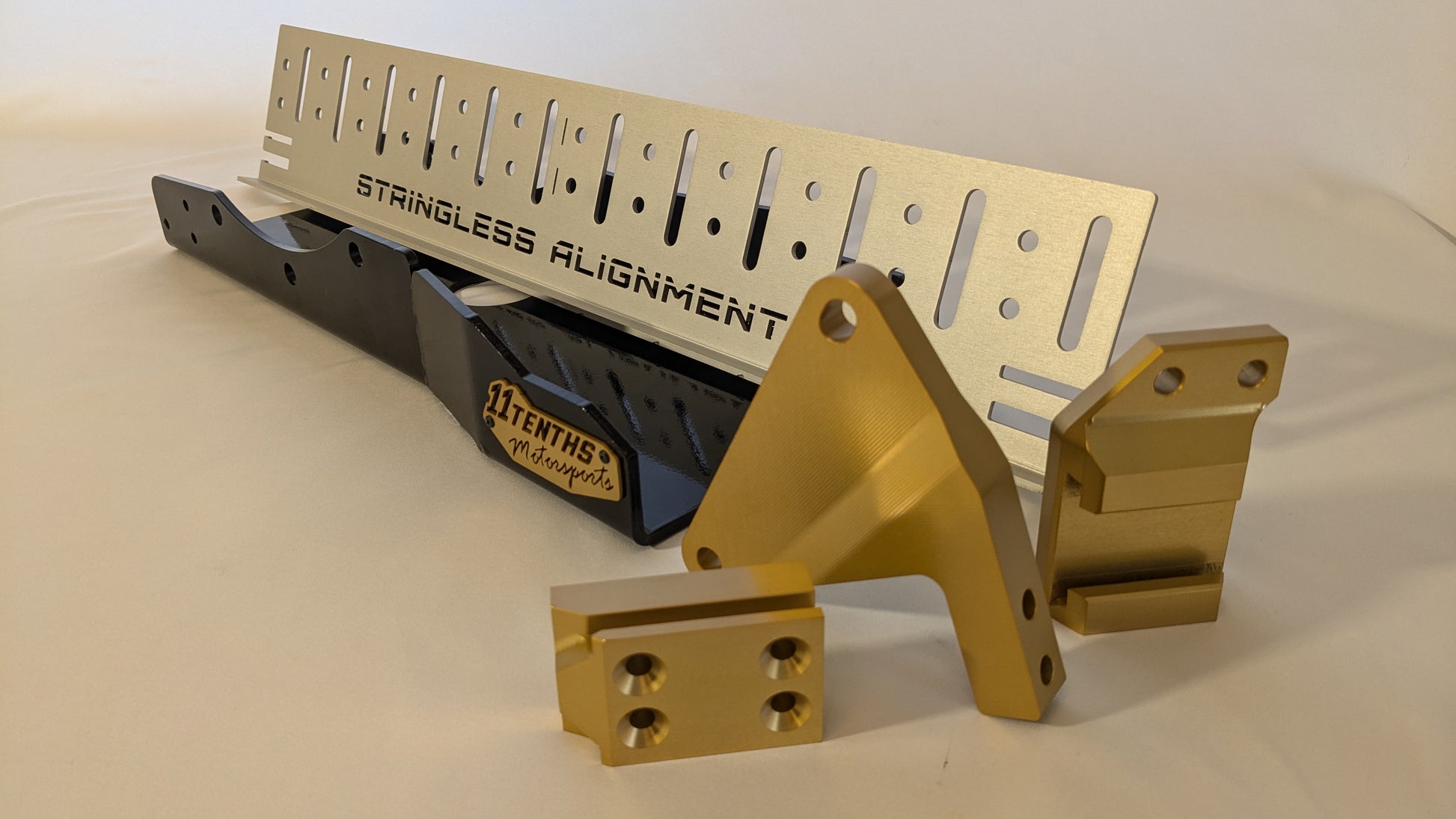

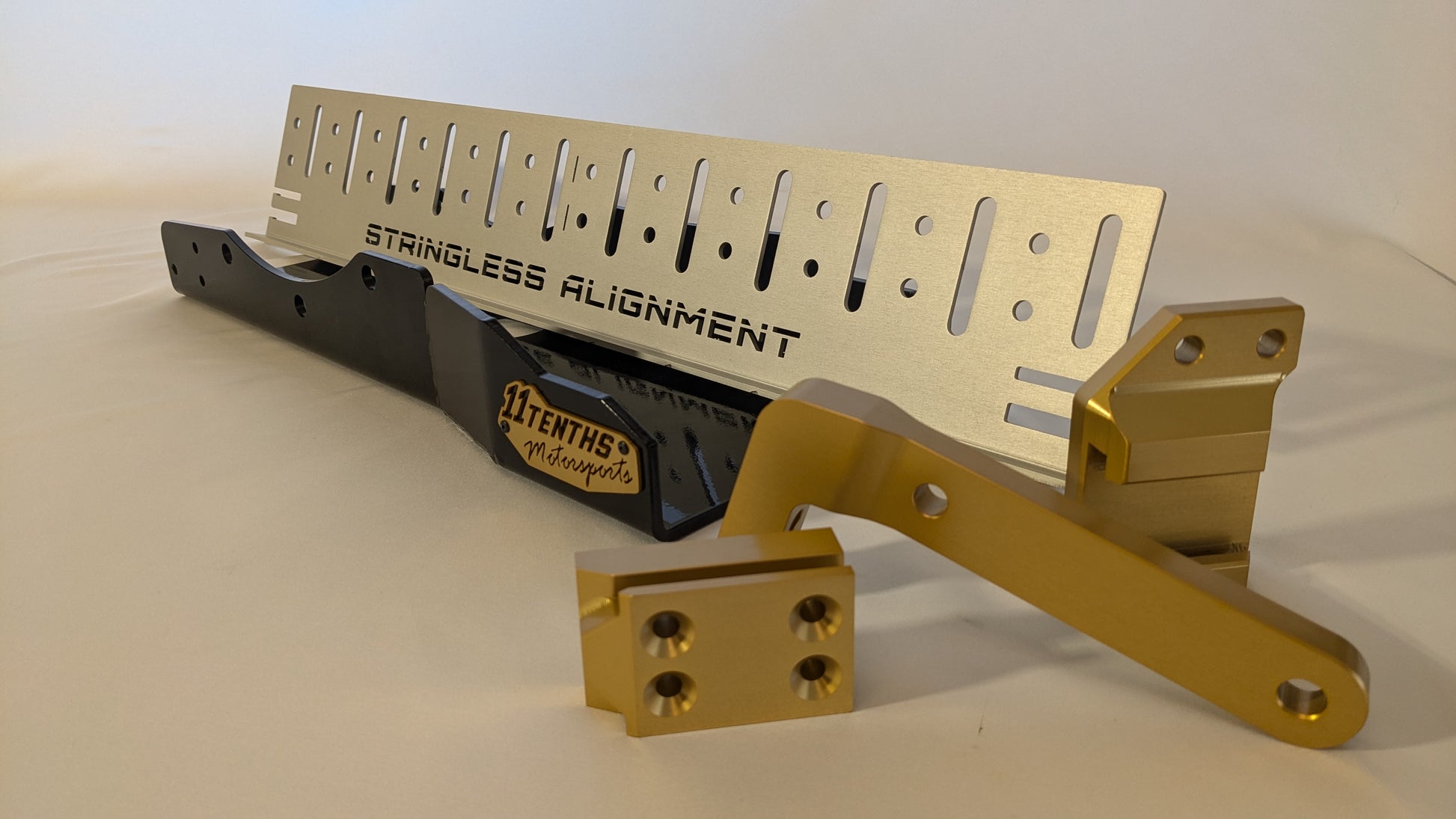

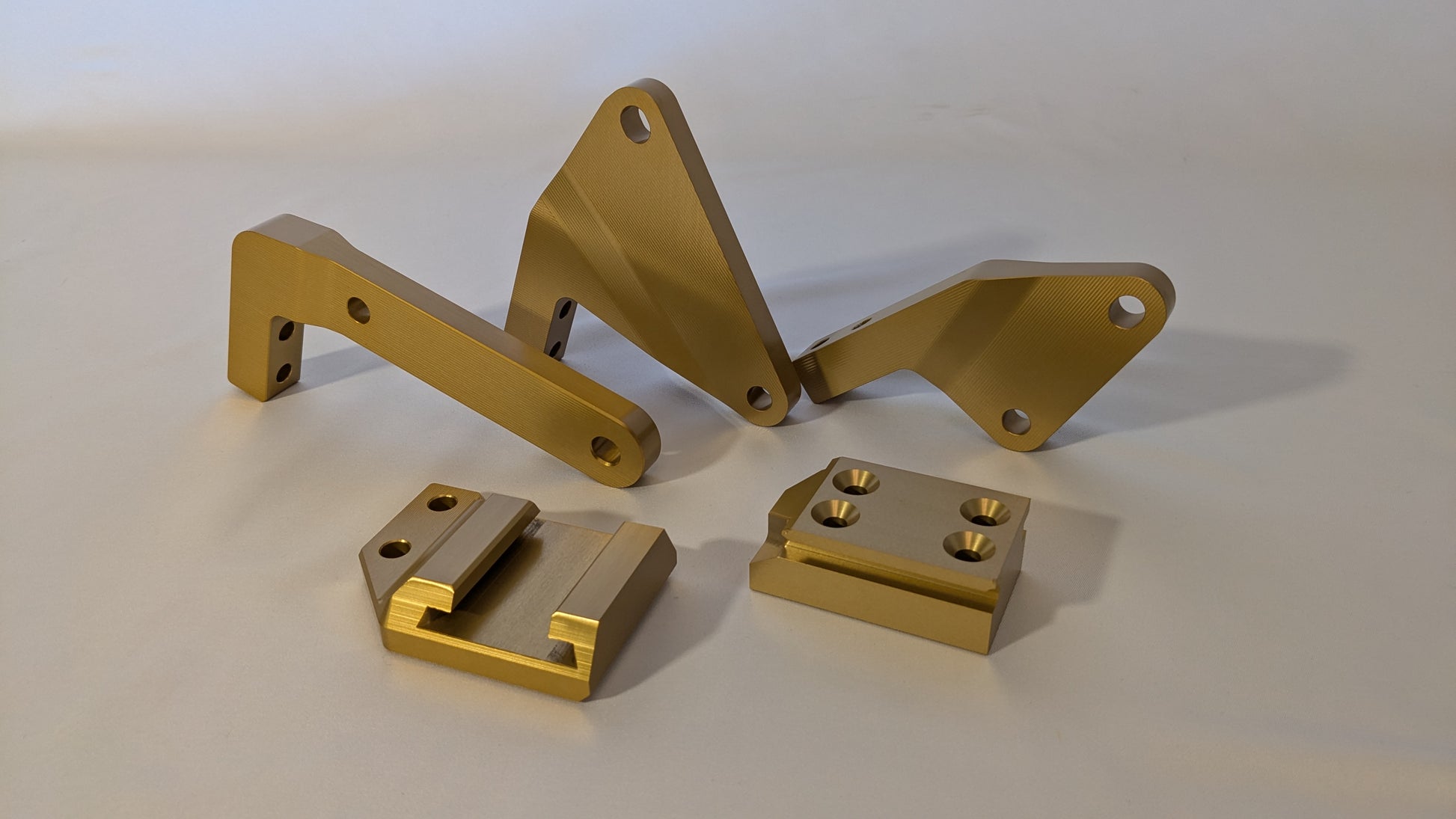

Skid Plate, drop brackets, studs, mounting hardware and instructions included in every order. Skid plate is made of 3/16 steel. All drop brackets are made of billet aluminum. Two matching fraction measuring tapes optional.
This assembly must be used with toe plates. The measurement plate height and tilt can be adjusted to fit your vehicles setup. Minimum height from ground skid pan required - 2.75"
